Controlling the App from an AI Assistant

AstroPlotorium can take commands from an AI assistant on this computer. The assistant gets the same abilities as a script: the view, the clock, the place, the layers, and the target. It drives the app that is already open. It does not browse the rest of your files.

The command names, angles, time units, and layer ids are the ones in Scripting. A turn, a zoom, or an animated time step finishes before the next tool returns, so a screenshot taken afterward shows the settled view.

Turn it on

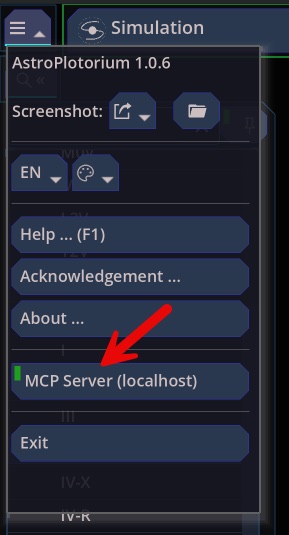

In the home menu, check MCP Server (localhost). The server listens only on this machine, at:

http://127.0.0.1:8765/mcp

It is off until you check that item. The choice is remembered. Uncheck it, or quit the app, and the port closes. The app has to be running, with the item checked, before an assistant can connect.

Leave the address as it is unless you have set a different port. If you have, use that port in the URL.

By default the server does not ask for a password. If this install requires a token, the assistant must send it as Authorization: Bearer followed by the token.

A cloud connector cannot reach 127.0.0.1. Keep the server on this computer. Do not forward port 8765 to the internet. If you use a token, treat it like a password for the session.

Cursor

Cursor can use the local address directly. Put this in the project file .cursor/mcp.json, or in ~/.cursor/mcp.json. If both files define astroplotorium, the project file wins. You can also add it under Cursor Settings → MCP.

{
  "mcpServers": {
    "astroplotorium": {
      "url": "http://127.0.0.1:8765/mcp"
    }
  }
}

With a token:

{
  "mcpServers": {
    "astroplotorium": {
      "url": "http://127.0.0.1:8765/mcp",
      "headers": {
        "Authorization": "Bearer YOUR_TOKEN"
      }
    }
  }
}

If the server does not appear, turn it on in Cursor’s MCP settings. AstroPlotorium must already be running with MCP Server (localhost) checked.

Claude Desktop

Claude Desktop starts local tools as programs. It does not call http://127.0.0.1 from a URL entry. Install Node.js 18 or newer so that npx is on your PATH, then add a bridge.

Settings → Developer → Edit Config opens the file. Create it if it is missing.

System	File
macOS	~/Library/Application Support/Claude/claude_desktop_config.json
Windows	%APPDATA%\Claude\claude_desktop_config.json
Linux	~/.config/Claude/claude_desktop_config.json

Add the astroplotorium entry beside any servers you already have. Replacing the whole file drops those other servers.

{
  "mcpServers": {
    "astroplotorium": {
      "command": "npx",
      "args": [
        "-y",
        "mcp-remote",
        "http://127.0.0.1:8765/mcp",
        "--allow-http",
        "--transport",
        "http-only"
      ]
    }
  }
}

-y lets npx run without a prompt. --allow-http allows this local address. --transport http-only matches the way the app accepts commands.

With a token, pass the header through an environment variable so the space in Bearer … survives:

{
  "mcpServers": {
    "astroplotorium": {
      "command": "npx",
      "args": [
        "-y",
        "mcp-remote",
        "http://127.0.0.1:8765/mcp",
        "--allow-http",
        "--transport",
        "http-only",
        "--header",
        "Authorization:${AUTH_HEADER}"
      ],
      "env": {
        "AUTH_HEADER": "Bearer YOUR_TOKEN"
      }
    }
  }
}

Quit Claude Desktop completely, including the menu-bar or system-tray process, and open it again. The tools show as a hammer on the message box.

Claude Code

Claude Code can use the address directly:

claude mcp add --transport http astroplotorium http://127.0.0.1:8765/mcp

In ~/.claude.json or a project .mcp.json, a URL entry includes "type": "http":

{
  "mcpServers": {
    "astroplotorium": {
      "type": "http",
      "url": "http://127.0.0.1:8765/mcp"
    }
  }
}

What the assistant can do

Ask in ordinary language. The tool names below are what the assistant calls.

Tool	What it does
goto, view	Turn to a named object
set_fov	Field of view, in degrees or an angle string
set_layer, list_layers	Show or hide a layer, or list the ids
set_constellation_visible, list_constellations, set_constellation_preset	One constellation, the list, or all / none / zodiac
set_asterism_visible, list_asterisms, set_asterism_preset	The same for asterisms (all / none)
set_option, list_options	A slider or a menu choice
set_time	Jump to an ISO UTC time
add_time	Step the clock. unit is Y, M, D, h, m, or s. duration_ms of 0 jumps; omit it for a short glide
set_auto_update_unit	The unit used by play and by the step buttons
time_play, time_stop, time_resume, time_reset	Fast forward, pause, real time, or snap to now
time_increment, time_decrement, time_increment10, time_decrement10	The +1 / −1 / +10 / −10 buttons
set_location, get_location	City, saved place, or latitude and longitude
set_look_from, get_look_from	The body you are looking from
set_view_mode	Main View, by the same names as the menu
set_orbit_altitude_km	3D Orbit camera height, in kilometers
set_orbit_iss_track	3D Orbit: a simplified ISS-like ground track
set_orbit_fly	3D Orbit: unlock flying
set_coordinate_system	Equatorial, ecliptic, galactic, or horizontal
look_at_radec, look_at_equatorial, look_at_ecliptic, look_at_galactic, look_at_horizontal	Aim by angle
camera_rotate	Turn the view by a drag, in degrees
follow_target, follow_view_from	Track the selection, or follow Earth or the Sun
show_navigator, show_property_list, show_charts	The side panels and the charts
set_display_view	default, photoreal, or presentation
set_secondary_view_fov, set_secondary_view_sync	The secondary pane
wait, wait_for_user	Pause, or wait until you click Next in the app
get_state, set_state	Read the view, or restore the keys you send
get_target_property	The property list of the current target
calc	Property list for a named object, without selecting it. Optional UTC date
calc_validate	Compare one planet or moon with NASA Horizons. Needs the network
hms_to_deg, deg_to_hms	Hour angle to degrees, and the reverse
dms_to_deg, deg_to_dms	Degrees, minutes, and seconds to a number of degrees, and the reverse
search, help	Name matches, and the command list
screenshot	Save a PNG and hand the picture back. Optional type: default, photoview, presentation, presentation_chart
run_script	Run a JavaScript program with the same commands as the script console

run_script does not turn Presentation on by itself. Ask for Presentation, or press P, when you want the toolbars hidden. wait_for_user leaves a button on the sky until you click it, the same way a tour does.
